INDUSTRIAL VALVES

Industrial valves are the gatekeepers of fluid control, regulating the flow, pressure, and direction of liquids and gases. From butterfly valves to ball valves, globe valves to gate valves, these mechanical devices play a vital role in process control and pipeline management. At KBN Engineers, the Jalandhar, Punjab-based supplier of flow-meters,Industrial Valves and Brass Fittings, you'll discover a vast array of industrial valves engineered to perfection, ensuring seamless operations and enhanced safety.

CAST IRON BUTTERFLY VALVE WAFERS

M.O.C	Body C.I./SS 304 / SS 316
MFG. STD	BS5 155
DISC	C.I., CF8M
RATING	PN 10, PN 16
SIZE	50 MM TO 250 MM HYDRO-TEST
PRESS	SCREWED/FLANGED HYDRO-TEST
BODY	225 Psi (16 Kg/Cm2)
SEAT	165 Psi (11 Kg/Cm2)

BALL VALVE 3 PC SCREWED

M.O.C	C.I., C.S., CFB, CF8M, M.S, S.S
MFG. STD	BS 5351
TESTING	Bs6755
DESIGN	3PC
RATING	150#
SIZE	15 MM TO 100 MM
END	SCREWED/SOCKET WELD HYDRO-TEST
PRESS
BODY	425 Psi (30 Kg/cm2)
SEAT	300 Psi (21 Kg/Cm2 )
PNEUMATIC AIR TEST	7 Kg/cm2

GATE VALVE

M.O.C	WCB/CF8/CF8M
MFG. STD	API 600
TESTING	API 598
RATING	150# 300# & 600#
SIZE	25 MM TD 250 MM HYDRO - TEST
PRESS
BODY	425 Psi (30 Kg/Cm2)
SEAT	300 Psi (21 Kg/Cm2)
PNEUMATIC AIR TEST	7 Kg/cm2

BALL VALVE 3 PC FLANGED

M.O.C	C.I., C.S., CFB, CF8M, M.S, S.S
MFG. STD	BS 5351
TESTING	Bs6755
DESIGN	3PC
RATING	150#, 300# & 600#
SIZE	15 MM TO 150 MM
END	FLANGED END HYDRO-TEST
PRESS
BODY	425 Psi (30 Kg/Cm2)
SEAT	300 Psi (21 Kg/Cm2)
PNEUMATIC AIR TEST	7 Kg/cm2

BALL VALVE 1 PC & 2 PC FLANGED

M.O.C	C.I., C.S., CFB, CF8M, M.S, S.S
MFG. STD	BS 5351
TESTING	Bs6755
DESIGN	1PC & 2PC
RATING	150#, 300# & 600#
SIZE	15 MM TO 100 MM
END	FLANGED END HYDRO-TEST
PRESS
BODY	425 Psi (30 Kg/cm2)
SEAT	300 Psi (21 Kg/Cm2)
PNEUMATIC AIR TEST	7 Kg/cm2

GLOBE VALVE

M.O.C	WCB/CF8/CF8M
MFG. STD	API 600
TESTING	API 598
RATING	150#, 300# & 600#
SIZE	25 MM TO 250
PRESS
BODY	425 Psi (30 Kg/cm2)
SEAT	300 Psi (21 Kg/Cm2)
PNEUMATIC AIR TEST	7 Kg/cm2

BALL VALVE 3WAY / 4 WAY

M.O.C	C.S., CFB, CF8M, M.S, S.S
MFG. STD	BS 5351
TESTING	Bs6755
DESIGN	L-PORT/T-PORT
RATING	150#
SIZE	15 MM TO 100 MM
END	SCREWED/FLANGED HYDRO-TEST
PRESS
BODY	425 Psi (30 Kg/Cm2)
SEAT	300 Psi (21 Kg/Cm2)
PNEUMATIC AIR TEST	7 Kg/cm2

FORGED STEEL VALVE

M.O.C	ASTM A105/F 304/ F316
MFG. STD	API 602/BS 5352
DESIGN	SCREWED END SOCKET WELD
RATING	800#
SIZE	15 MM TO 50 MM
END	SCREWED/SOCKET WELD HYDRO-TEST
PRESS
BODY	3000 Psi (211 Kg/Cm2)
SEAT	2000 Psi (140 Kg/cm2)
PNEUMATIC AIR TEST	7 Kg/cm2

WAFER TYPE NRV

M.O.C	WCB/CF8/CF8M
MFG. STD	API 600
TESTING	API 598
RATING	150#, 300# & 600#
SIZE	25 MM TO 250 MM HYDRO-TEST
PRESS
BODY	425 Psi (30 Kg/Cm2)
SEAT	300 Psi (21 Kg/Cm2)
PNEUMATIC AIR TEST	7 Kg/cm2

BALL VALVE 1 PC SCREWED

M.O.C.	C.I. C.S., CFB, CF8M, M.S, S.S
MFG. STD	BS 5351
TESTING	BS6755
DESIGN	1PC
RATING	150#
SIZE	15 MM TO 100 MM
END	SCREWED/SOCKET WELD HYDRO-TEST
PRESS
BODY	425 Psi (30 Kg/Cm2)
SEAT	300 Psi (21 Kg/Cm2 )
PNEUMATIC AIR TEST	7 Kg/cm2

SWING TYPE NRV

M.O.C	WCB/CFB/CF8M
MFG. STD	Bs5 1686
RATING	150#, 300# & 600#
END	FLANGED END/SCREWED
SIZE	25 MM TO 250 MM HYDRO-TEST
PRESS
BODY	425 Psi (30 Kg/Cm2)
SEAT	300 Psi (11 Kg/Cm2)
PNEUMATIC AIR TEST	7 Kg/Cm2

NON SLAM DISC CHECK VALVE

M.O.C	BODY C.I./SS 304 / SS 316
MFG. STD	Bs5 155
DESIGN	C.I., Cf8, CF8M
RATING	PN 10, PN 16
SIZE	15 MM TO 50 MM HYDRO-TEST
PRESS
BODY	225 Psi (16 Kg/Cm2)
SEAT	165 Psi (11 Kg/Cm2)

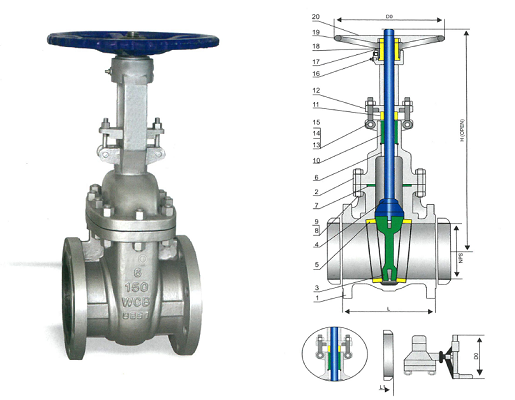

Gate Valves

Forged Steel

Investment Casting

Pressure Seal

Knife Gate

GATE VALVES

SIZE	15mm to 900mm on request.
END	FE/SE/SW/BW
RATING/CLASS	150/300/600/900/1500/2500/PN 10 - PN 16
OPERATION	Manual Hand Wheel / Gear / Electrical Actuator / Pneumatic Actuator / Cylinder
MOC	WCB, SS, FORGE STEEL, ALLOY STEEL

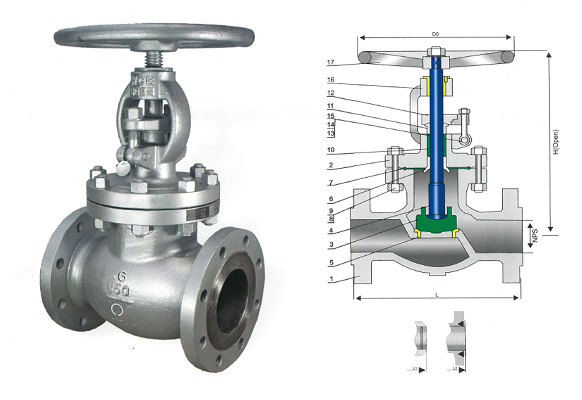

Globe Valves

Forged Steel

ND-40

Class-300

Class-600

GLOBE VALVES

SIZE	15mm to 600mm above on request.
END	FE/SE/SW/BW
RATING/CLASS	150/300/600/900/1500/2500/PN 10 - PN 16
OPERATION	Manual Hand Wheel / Gear / Electrical Actuator / Pneumatic Actuator / Cylinder
MOC	WCB, SS, FORGE STEEL, ALLOY STEEL

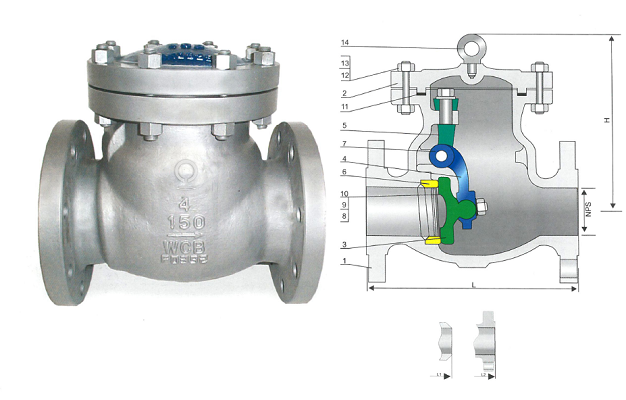

Check Valves

Forged Carbon Steel

ND-40

Wafer Check

Dual Plate/NON SLAM

CHECK VALVES

SIZE	15mm to 900mm on request.
END	FE/SE/SW/BW
RATING/CLASS	150/300/600/900/1500/2500/PN 10 - PN 16
OPERATION	Manual Hand Wheel / Gear / Electrical Actuator / Pneumatic Actuator / Cylinder
MOC	WCB, SS, FORGE STEEL, ALLOY STEEL

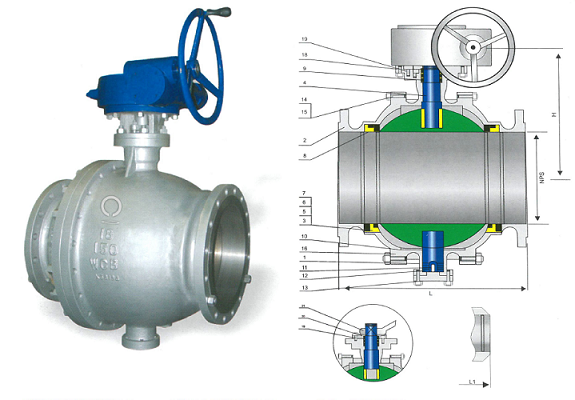

Ball Valves

Single Piece SE/FE

3 Pieces Design SE/FE

Motor Operated Ball Valve

3 Way SE/FE

BALL VALVES

SIZE	15mm to 600mm above on request.
END	FE/SE/SW
RATING/CLASS	150/300/600/900/1500/2500/PN 10 - PN 16
OPERATION	Lever / Gear / Electrical Actuator / Pneumatic Actuator / Cylinder
MOC	WCB, SS, FORGE STEEL, ALLOY STEEL

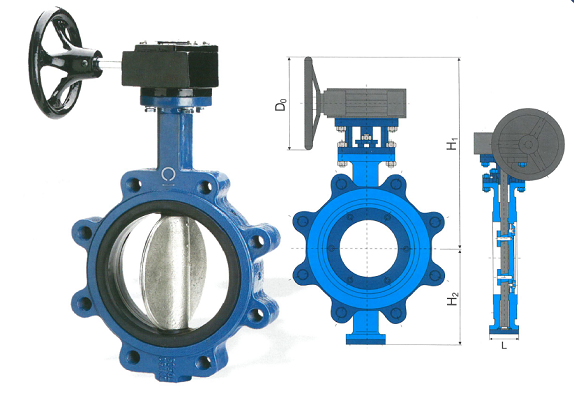

Butterfly Valves

Wafer Type

Lugged Type

Double Flanged

Motor Operated

BUTTERFLY VALVES

SIZE	40mm to 600mm on request.
END	Wafer/Lugged Type/Double Flanged
RATING/CLASS	150/300/PN 10 - PN 16
OPERATION	Manual Hand Wheel / Gear / Electrical Actuator / Pneumatic Actuator / Cylinder
MOC	WCB, SS, ALLOY STEEL

SIZE	15mm to 900mm above on request.
END	FE/SE/SW
RATING/CLASS	150/300/600/ PN 10 - PN 16
MOC	CI, WCB, SS

SIZE	15mm to 150mm on request.
END	FE
RATING/CLASS	150/300
MOC	WCB, SS, FORGE STEEL, ALLOY STEEL
